70d 210d 300d 420d 600d 840d 1000d Nylon or Polyester Cordura Ripstop Taffeta Fabric with Tpu Laminated for Inflatable
Item No.: YT2131
Price: $2-$7/yard (Pls send inquiry to get accurate price )
Email: info@yitaitextile.com, Mobile/Whatsapp/Wechat: +86-13669887160
Different colors have in stock.
Our TPU Laminated Nylon Fabric provides the perfect fusion of lightweight flexibility, extreme durability, and 100% airtight, waterproof performance. Engineered by bonding a high-grade Thermoplastic Polyurethane (TPU) film to premium nylon fabric, it offers superior tensile strength, abrasion resistance, and eco-friendly compliance, making it the ideal choice for inflatable safety gear, medical products, and outdoor waterproof bags.
What makes TPU laminated nylon fabric superior to traditional PVC coated fabrics?
TPU laminated nylon is significantly lighter, more eco-friendly, and offers far superior cold resistance and hydrolytic stability compared to conventional PVC coatings. Unlike PVC, TPU contains no toxic plasticizers, remains highly flexible in sub-zero temperatures, and can be heat-welded or high-frequency welded to create completely airtight, leak-proof seams.
How does the TPU lamination enhance waterproof and airtight performance?
The TPU membrane forms an impenetrable, uniform barrier that completely prevents water penetration and air leakage even under high pressure. This advanced lamination process fuses the TPU directly onto the high-tenacity nylon base, ensuring exceptional bond strength that will not delaminate, peel, or crack under repetitive flexing.
What are the core technical specifications and features of this material?
Our TPU composite nylon series is fully customizable to meet demanding industrial and medical specifications. Key product highlights include:
Base Fabric Range: Available in various nylon deniers (70D, 210D, 420D, 840D) in Oxford, Ripstop, or Twill weaves.
Lamination Types: Single-side TPU lamination or double-side TPU coating based on application requirements.
Sealing Compatibility: Excellent weldability via High-Frequency (HF) welding, ultrasonic sealing, and hot-air welding.
Environmental & Safety Standards: Non-toxic, eco-friendly, and compliant with REACH, RoHS, FDA, and EN71 standards.
Specialized Customizations: Supports anti-UV, anti-bacterial, flame retardant, and custom color matching.
How does TPU laminated nylon compare with other coating materials?
Choosing TPU composite fabric over traditional PU or PVC laminates delivers distinct physical and environmental advantages:
| Material Property | TPU Laminated Nylon | PU Coated Nylon | PVC Laminated Nylon |
| Airtight & Water Integrity | 100% Airtight / Waterproof | Water-Resistant (Not Airtight) | Waterproof / Airtight |
| Environmental Friendliness | Eco-friendly, Non-toxic, Recyclable | Moderate Eco-profile | Contains Plasticizers / Non-eco |
| Flexibility at Low Temps | Excellent (Down to -30°C) | Moderate | Poor (Becomes Brittle/Stiff) |
| Sealing Method | High-Frequency / Hot Air Welding | Stitching + Seam Tape | High-Frequency Welding |
| Primary Applications | Inflatable Life Vests, Dry Bags, Medical Air Mattresses | Backpacks, Rain Jackets, Tents | Heavy Tarps, Inflatable Boats, Heavy Covers |
Frequently Asked Questions (FAQ)
Q1: Is TPU laminated nylon suitable for high-frequency (HF) welding processes?
A: Yes, TPU is inherently thermoplastic, making it perfectly suited for high-frequency welding, ultrasonic sealing, and hot-air taping to create 100% leak-proof, seamless seams.
Q2: Can I get customized TPU thickness and fabric colors?
A: Yes, we can customize both the TPU film thickness (typically from 0.02mm to 0.5mm) and the nylon base fabric color based on your specific Pantone codes or physical samples.
Q3: What are the main commercial and industrial applications for this composite fabric?
A: It is widely used in high-performance outdoor dry bags, inflatable life jackets, medical pressure mattresses, outdoor inflatable sleeping pads, waterproof backpacks, and military water bladders.
Product Description
210D UHMWPE Fabric Gridstop Nylon fabric
| Material: | 100% Nylon |
| Item No.: | YT2131 |
| Yarn Count: | From 40d to 2520d |
| Density: | null |
| Weight: | TBD |
| Thinkness: | TBD |
| Width: | 58” |
| Finishing: | TPU laminated |
| Yards/roll: | TBD |
| Features: | Able to customize water repellent,waterproof,ripstop,durability,etc. |
| Standard: | Able to comply with REACH,ROHS,EN71,etc. |

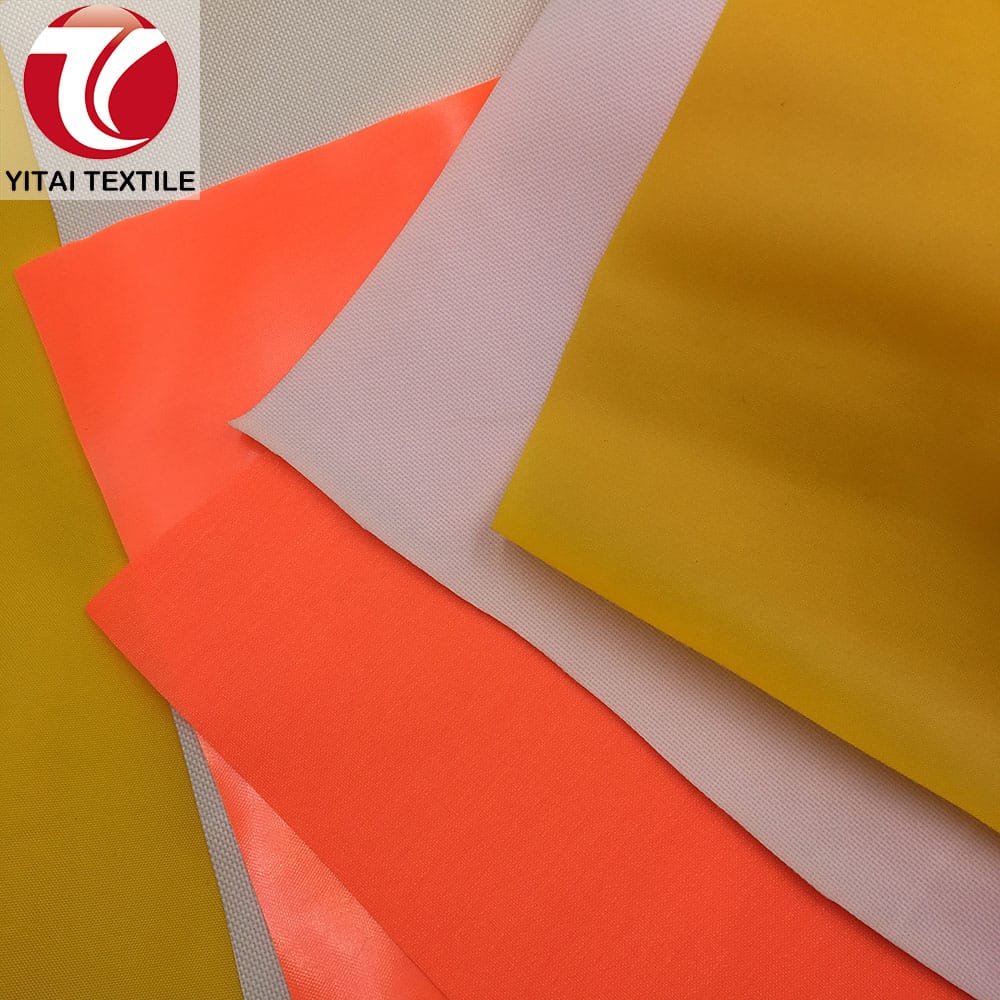

Front enlarged details picture

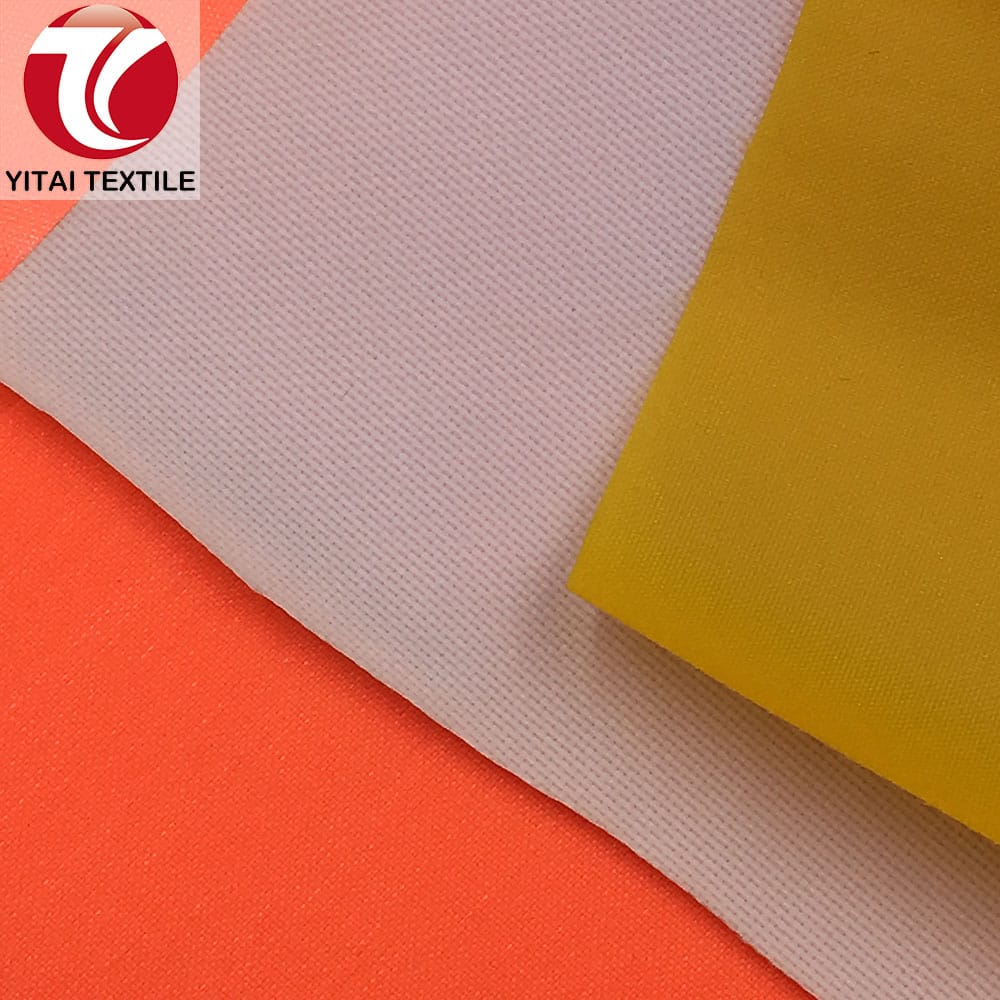

Back enlarged details picture

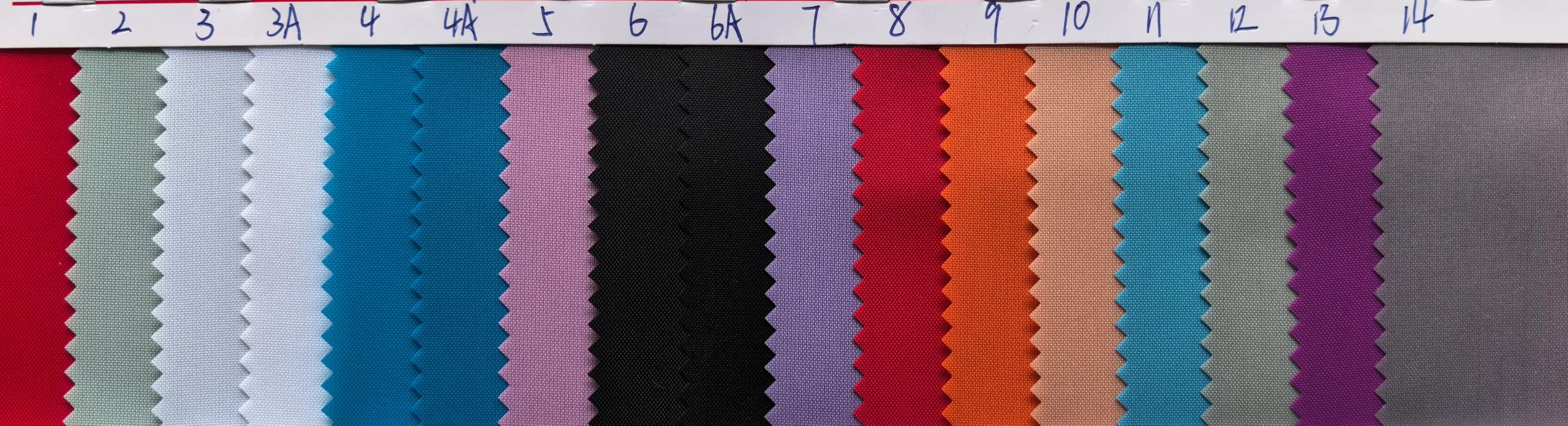

Color card of product
Products Overview
We offer a full line of nylon fabric and polyester fabric in a variety of colors, styles and materials including ripstop nylon fabric, ballistic nylon fabric, cordura nylon fabric, dobby nylon fabric, camouflage nylon fabric, wash crinkle nylon fabric, printing nylon fabric, twill nylon fabric and nylon oxford fabric along with a complete line of woven polyester fabric. The products specification range includes but it is not limited to 170T,190T,210T,210D,300D,420D,500D,600D,840D,1000D,1050D,1260D,1680D,2520D,3530D.
Article: | 100% nylon fabric,100% polyester fabric |
Technics: | Woven |
Specification: | 70D; 190T; 210T; 230T; 272T; 290T; 210D; 300D; 400D; 420D; 500D; 600D; 800D; 840D; 900D; 930D; 1000D;1050D; 1200D; 1260D; 1680D; 2520D; 3230D; etc. |
Finish: | dyed; pu ; pvc ; pvc foam; water repellent(W/R); A/C ; printed; PA; flame retardant; Anti-UV; Camouflage printed; silver coating; gold coating; milky coating; rubber coating; TPU; TPE; ULY; laminated with knitting; etc. |
Color: | We can make lab dips according to customer’s color sample or pantone No. |
Supply Type: | In-stock items or make-to-order |
Supply Ability: | 6,000,000 yards/month |
Company: | Manufacturer; Trading company |
Packing: | Rolled with hard paper tube, packed in plastic bag, second packing with woven bag |
Delivery: | Shipped in 15~25 days after receiving deposit |
Use for bags: | Bags, Backpack,Laptops bags ,Outdoor backpack,Trolley bag,bean bag, Sports Bag,School Bag,Military backpack,Army bags,handbag,etc. |
Usage: | luggage,travel luggage,luggage suitcase,trolley luggage,etc. |
Usage : | police belt,jackets,shoes,umbrella,rainwear,lining,Motorcycle clothing,raincoat,garments,tents,parachute,suitcase,wallet,etc. |
More related infomation, pls click products catalog
- Packaging & Delivery
- Rolled with paper tube, 50/100/150/200 yards/roll.
- Packed in plastic bag.
- Second packing with woven bag
- All packing details can according to the customer’s special requirement.
- Delivery Port: Shenzhen/Yiwu/Ningbo etc.
Certifications
FAQ
Q1.Can we get a sample for reference?
A: Of course.We can send you free A4 size sample to you, If you require the size bigger than A4 size, please pay for the sample charge and postage. The charge will be refund when placing an order.
Q2.How much does the freight charge?
A: Freight charge depends on the weight of goods and shipping method. I will give you accurate charge once you confrim the demanded products and quantity.
Q3.Do your products have in stock?
A: Yes. Parts of our products have in stock. For these products, small quantity order is acceptable.
Q4.Do you accept customized order?
A: Yes. Our technical engineer will analyze the sample you sent and draw a conclusion. Then we will give you a counter sample for checking the quality.
Q5.What is the MOQ for bulk order?
A: The MOQ is 1000 yards per color. If your quantity is less than MOQ, we also can do. But should be surcharged. The surcharged is about USD80~150 per color.
Q6.What is the lead time for bulk order?
A: The lead time is various according to fabric and quantity. The normal delivery time is about 15~25 days. If you need the fabrics urgently, we will try our best to make it in time.
Q7.What is the payment term of your company?
A: For new customer, it is T/T 30% deposit and the balance before shipment. We can discuss better payment term after several orders in good cooperation.
Q8.What is your quality guarantee?
A: If you have chinese agency, the best way is to do the inspection before shipment. If not, you can check it once you receive the goods, Please check it in a week. If there are some quality defect, we will afford all the lost caused by us.
